"Explosive Detectors"

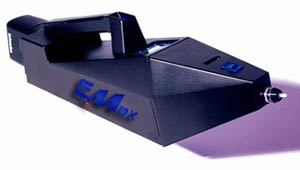

EMAX - 5300
FOR HAND-HELD EXPLOSIVE DETECTION




The EMAX-5300 is the world's first and most recognized portable explosives trace detector with comprehensive explosives detection capabilities. Ready to operate in only 60 seconds, the EMAX-5300 is the only hand-held device capable of detecting the presence of plastic and high-vapor-pressure explosives, including taggants. If portability, quick detection and clear results are crucial, then this is the explosive detector needed. The EMAX-5300 detects traces of both particulates and vapors, allowing for non-invasive searches of luggage, mail, vehicles, documents and containers.

Proven: The EMAX-5300 is the only hand-held detector capable of detecting traces of plastic and high-vapor-pressure explosives - giving clear results you can trust.

Flexible Power Sources: The EMAX-5300 offers you the choice of a 12-volt DC rechargeable battery pack, external battery pack and AC adapter, making it convenient to use in virtually all application environments.

Sensitive and Selective: The EMAX-5300 can detect and identify minute traces of C-4, TNT, Dynamite, PETN, Semtex, EGDN, DMNB, RDX, and Nitroglycerine.

Portable: The EMAX-5300 is self-contained and lightweight (less than 7 lbs.) and comes in a fully equipped, rugged carrying case, ready to use when and where you need it.

Easy-to-Use: The EMAX-5300 is ready for operation within one minute from turn on. A simple push of a button automatically activates the sampling and analysis mode. Results are displayed on an easy-to-read LCD making the EMAX-5300 ideal for all non-technical personnel.

Operation the EMAX-5300
The EMAX-5300 is flexible and easy to operate, offering both vapor and particulate sampling without the use of a radioactive source or external carrier gas. Vapors are sampled directly via the sampling nozzle. Particulates are sampled by swiping a suspected object with cotton gloves and then transferring the traces to a screen which is then inserted into the sampling port. This dual capability enables users to select the most suitable method of sampling for the explosives of interest. The EMAX-5300 starts processing samples immediately and gives results in just seconds. All results are indicated on the LCD and by a volume-adjustable audio alarm, making detection a simple one-step process.

The world's first and most recognized portable explosives trace detector, the EMAX-5300, is ideal for:

• Airports • Postal stations
• Embassies • Corporate headquarters
• Border crossings • Banks
• Federal buildings • Prisons
• Military installations • Forensic investigations
• Peacekeeping and armament control • Railway and subway terminals
• Nuclear facilities • Underground parking areas
• Courts of law

Specifications

Detection Principle
Electrochemical (Thermo-Redox) detection
No radioactive source Sampling Capabilities

Detectable Compounds
Most military and commercially available explosives, including ICAO
Taggants (DMNB, EGDN, o-MNT, p-MNT) Typical Sample/Analysis Time
Sample: 5-30 seconds (user selectable based on application)
Analysis: 10 seconds

Sampling Capabilities
Vapors and particulates

Typical Sample/Analysis Time
Sample: 5-30 seconds (user selectable based on application)
Analysis: 10 seconds

Warm-up Time
One minute with regular use Carrier Gas
None required (ambient air)

Carrier Gas
None required (ambient air)

Controls

Power switch
Keypad
Vapor/particulate selector
Volume control Operational Status Indicators

Operational Status Indicators
LED indicator lights
2 X 16 character LCD for status messages
Audible alarm (with optional earphone)

Data Storage & Communication

896 retrievable data records
RS-232 serial output port for remote control and monitoring

Power Supply
12 volt DC rechargeable battery pack
External battery pack
12 volt AC adapter

Operating & Storage Temperatures
Operating: -5°C to +55°C (+23°F to +131°F)
Storage: -5°C to +65°C (+23°F to +149°F)

Weight & Dimensions
Unit weight: 3 kg (6.6 lbs.)
Unit dimensions: (LxWxH): 51 x 14 x 11 cm / 20 x 5.5 x 4.3"
Shipping Weight: 12 kg (26 lbs.)
Shipping Dimensions: (LxWxH): 57 x 26 x 39 cm / 22 x 10 x 155"

Warranty One year return to manufacturer.

* Due to continuing product improvements these specifications are subject to change.

PRICE: POR
