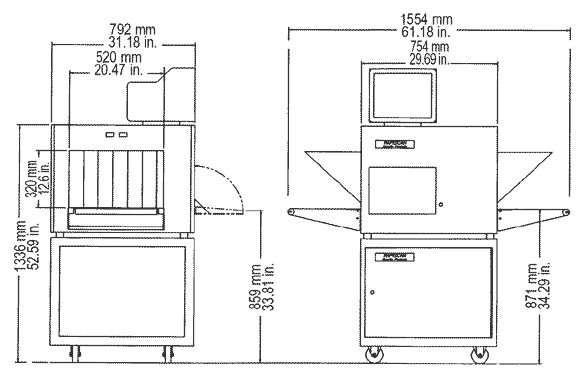

Dimensional Drawing	The Rapiscan Model 519 tabletop x-ray is afull featured, compact system providing advanced technologies for space restrictive security applications. Its superior image quality and enhanced features provide the essential tools for contraband detection. The system offers a tunnel opening of 520mm (20.47 inches) wide by 320mm (12.6 inches) high to accommodate largemail parcels and standard checkpoint items. Intel Pentium® computer technology is the drivingforce in all of our developments. The Model 519 is the first tabletop system in the industry to utilize PC based features, previously reserved for larger, permanently placed systems. Model 519 offerings include: Density Threat Alert, EdgeEnhancement, Operator Training Program and Crystal Clear™. Crystal Clear is an image optimization function that simultaneously displays maximum density penetration and wire resolution.
The Model 519 may also be configured with the following advanced options: Threat Image Projection (TIP): Provides real time operator training and performance monitoring. The system inserts threat objects at predefined settings and intervals, into otherwise clean bags allowing supervisors to monitor operator's response. Multiple language choices are available for on screen dialogue with the operator. Network Display Stations: This feature allows multiple x-ray units to be linked to a remote search area for additional review. TIPNET: Where many TIP systems are utilized in one location, TIPNET provides ease in management of multiple users, test schedule settings, download of data, etc. The Model 519 is part of the Rapiscan 500 Series product design, which offers a wide range of product configurations.
General: Resolution: 38AWG, 40AWG typical Penetration: 4mm steel guaranteed, 5mm typical Monitor: 17-inch SVGA color, high refresh, non flicker Power: 110 VAC +/- 10%/60Hz/6AMP Max or 230 VAC +/- 10%/50Hz/3AMP Max X-ray Generator: Cooling: Sealed Oil Bath with forced air Anode Voltage: 110KV rated, operating @ 80KV Tube Current: 0.5 mA typical Computer Specifications: Processor Speed: Intel Pentium® Processor currently available Memory: 64 MB Ram Video Memory: 16MB Hard Disk Drive: 8GB CD-ROM Drive: 40X minimum Floppy Disk: 1.44MB Physical Specifications: Dimensions: Length: 1554 mm (61.18 in.) Height: 1336 mm (52.59 in.) Width: 792 mm (31.18 in.) Tunnel Size: 520 (W) x 320mm (H) (20.47 x 12.6 in.) Approx. Weight: Net: 313 Kg (690 lbs.) Gross: 381 Kg (840 lbs.) Conveyor Speed: 0.22 M/Sec (44ft/min) Conveyor Load: 50Kg (110 lbs) Unit is mounted on heavy duty castors for ease of movement Environmental Requirements: Storage Temperature: -20°C to 50°C Operating Temperature: 0°C to 40°C Relative Humidity: 5 to 95% non-condensing Health and Safety: All Rapiscan systems comply with applicable international health andsafety regulations including USA FDA X-ray systems (Federal Standard 21-CFR1020.40) and Health and Safety at Work Act 1974-section 6, Amended by theConsumer Protection Act 1987. Maximum leakage radiation less than 0.1mR/hr (1µ Sv/hr) in contact with outer panels. Film Safety: For ISO 1600/33 DIN,guaranteed up to 10 times exposure to radiation. Standard Features: • Crystal Clear™ • 4-Color Palette • Density Threat Alert • Variable Edge Enhancement • High/Low Penetration • Variable Gamma • Inverse Video • Pseudo Color • Variable Density Zoom • Black and White Viewing • Variable Color Stripping • 2, 4, 6, and 8 times Zoom • View previous bag (up to 2 screens) • Baggage Counter • Search Indicator • Date/Time display • Full diagnostic built in test facility Options: • Multi-Energy • Operator Training Program • Threat Image Projection (TIP) • TIP Network • Manual Image Archiving • Automatic Image Archiving • VCR Output • Video Printer • Power Conditioner • Baggage Handling Accessories • Foot-mat • UPS (Uninterrupted Power Supply) • Short Conveyors
